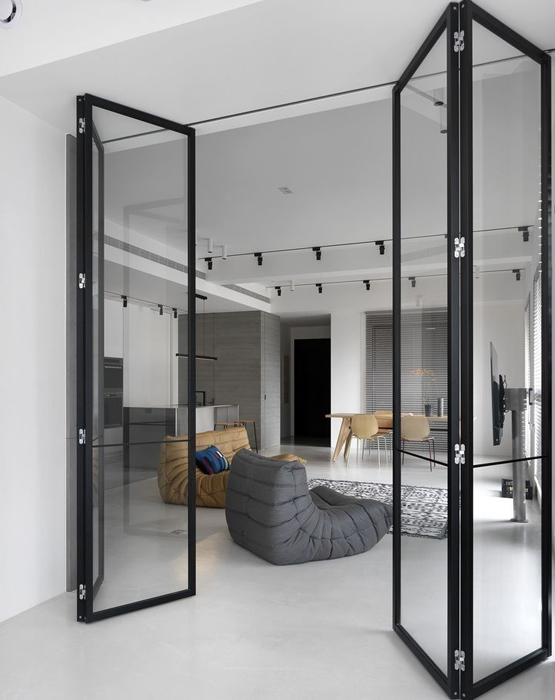

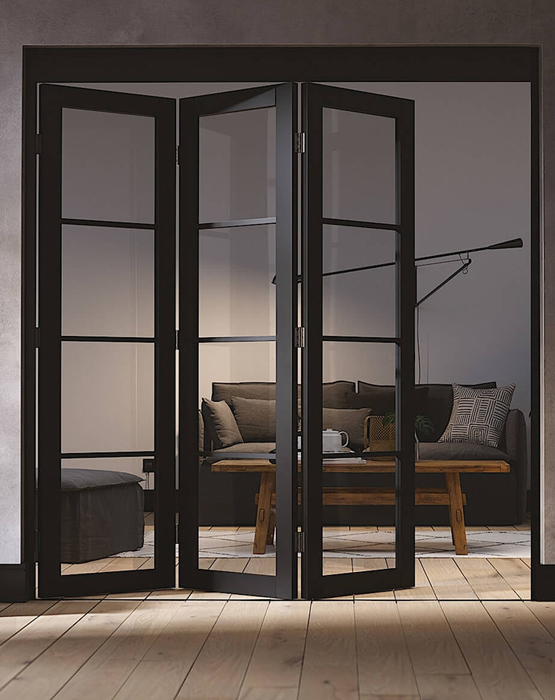

Folding Door For Interior Partitions

Indoor aluminum-framed glass folding partition doors represent an innovative product that combines functionality and aesthetic value in contemporary space design. This partition system utilizes high-strength aluminum alloy frames paired with premium glass panels, perfectly achieving the dual requirements of space division and visual transparency. Compared to traditional fixed walls or conventional sliding doors, folding partition doors offer revolutionary improvements in space utilization, lighting effects, and operational flexibility.

The core advantages manifest in three dimensions: First, their folding opening mechanism saves up to 90% of space occupancy, making them particularly suitable for modern residences with limited area. Second, the use of glass materials ensures free penetration of natural light, effectively addressing insufficient lighting in small spaces. Finally, the modular design supports complete customization to adapt to various architectural structures and decoration styles.

Product Structure and Technical Specifications

Frame System

Constructed with aerospace-grade aluminum alloy profiles, main specifications include:

• Profile thickness: 1.4mm-2.0mm
• Frame width options: 35mm/45mm/50mm
• Surface treatments: Anodizing, powder coating, fluorocarbon coating
• Color options: 20+ standard color schemes with custom color matching available

Glass Configurations

Standard: 5mm tempered clear glass

Upgrade options:

• 6-8mm double-glazed units (improved sound insulation and thermal performance)
• Decorative glass options (frosted, reeded, wired)
• Low-E coated glass (enhanced energy efficiency)
• Laminated safety glass (impact protection)

Hardware System

• Track material: High-strength aluminum alloy, optional concealed design
• Roller components: Stainless steel bearing rollers, noise level ≤30dB
• Locking system: Multi-point positioning locks with magnetic or mechanical options
• Load capacity: Maximum 80kg per panel, service life exceeding 100,000 cycles

Product Types and Application Scenarios

Classification by Opening Method

1、Unidirectional Folding Doors

• Features: All panels fold to one side
• Application: Narrow spaces, minimum installation width 1.2m
• Advantage: Minimal space occupation when open

2、Bidirectional Folding Doors

• Features: Panels fold symmetrically to both sides
• Application: Spacious areas, minimum installation width 2m
• Advantage: Maximizes space openness

3、Multi-Section Folding Doors

• Features: Multiple folding points with flexible combinations
• Application: Extra-wide openings (3m+)
• Advantage: Adjustable opening area

Recommended Applications

Residential Spaces

• Living room/balcony partitions: Recommended 8mm tempered insulated glass for noise reduction
• Open kitchens: Frosted glass recommended for transparency with grease protection
• Walk-in closets: Reeded glass for privacy and design enhancement

Commercial Spaces

• Office partitions: Fire-rated glass configurations meeting safety codes
• Restaurant private rooms: Floor-track-free design for easy cleaning
• Exhibition spaces: Ultra-clear glass for optimal product display

Installation Essentials and Maintenance Guide

Professional Installation Process

1、Site Measurement

• Precise measurement of opening dimensions (width, height, wall thickness)
• Floor levelness inspection (tolerance within 3mm)

2、Pre-Installation Preparation

• Determine opening direction and folding method
• Select surface-mounted or concealed track style

3、Installation Steps

• Secure overhead track (critical load-bearing point)
• Install door panels and connecting hinges
• Adjust roller system and positioning devices
• Final sealing and edge finishing

Maintenance Recommendations

• Monthly track channel cleaning to prevent dust accumulation
• Quarterly roller bearing lubrication using specialized silicone-based lubricant
• Glass cleaning with neutral cleaners to avoid sealant corrosion
• Regular screw tightness inspection and timely reinforcement

Advantages of Foshan Manufacturing

As the core cluster of China's door and window industry, the Foshan region boasts a complete industrial chain and mature production technologies. Aluminum-framed glass folding partition doors manufactured locally offer these outstanding advantages:

1、Exquisite Craftsmanship: 30 years of manufacturing heritage with meticulous attention to detail

2、Exceptional Cost Performance: Economies of scale reduce costs by 30%-40% compared to premium brands

3、Comprehensive Supply Chain: Complete industrial chain from profile extrusion to glass processing

4、Customization Flexibility: Supports small-batch personalized orders with lead times as short as 15 days

5、Quality Assurance: Strict compliance with GB/T8478-2020 national standards with 5-year warranty
